tomogui reconsΒΆ

the recons application run a reconstruction from a configuration file (generated by the tomogui project for example) and display the result and some extra information in the case of iterative (ART) reconstructions.

tomogui recons [configurationFile]

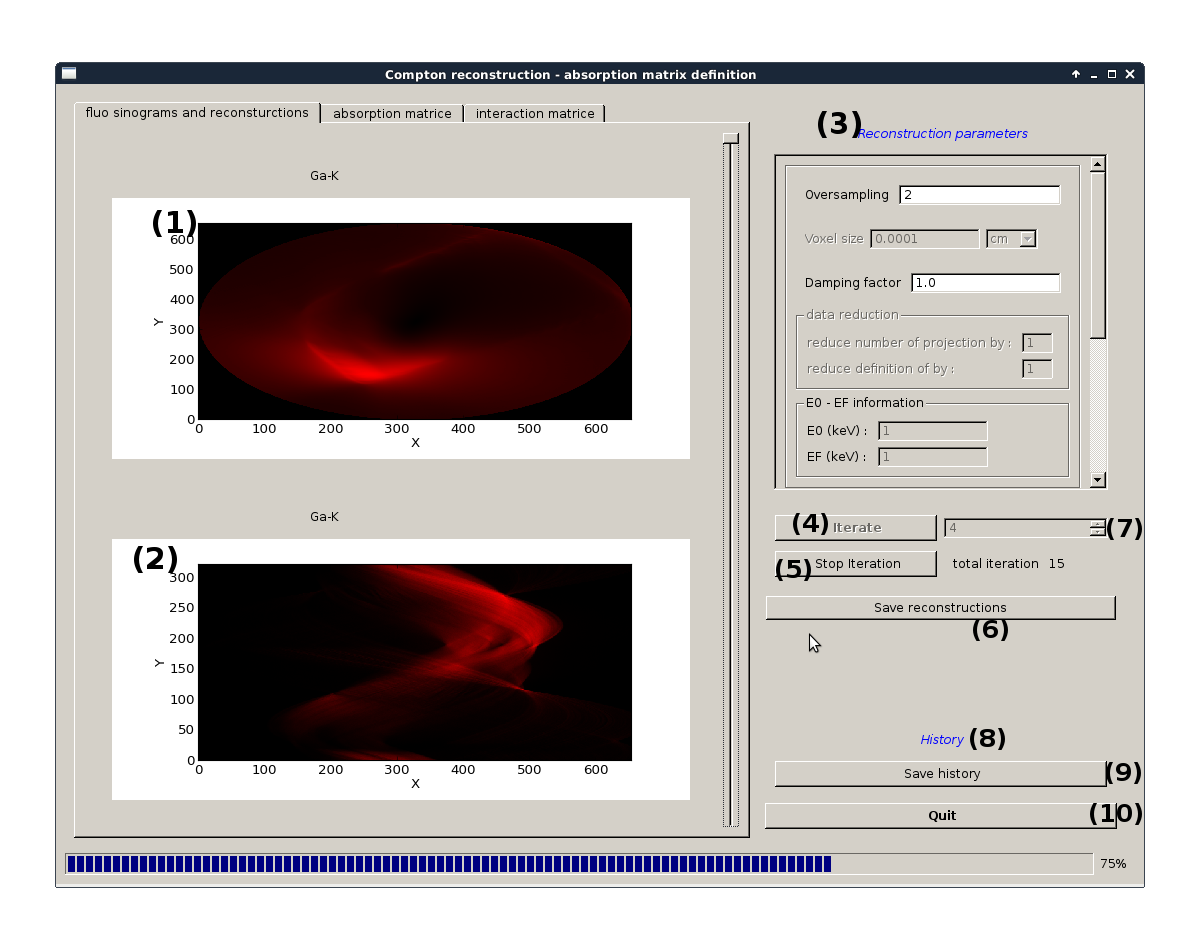

../_images/reconstructionManager.png
    1. This is the reconstructed sample at the current state.
    1. The sinogram we try to reconstruct actually
    1. Reconstruction parameters : display or hide the reconstruction paranters setted for the reconstruction. See section 3 for more information see section tomoguiproject/reconstruction parameters
    1. Iterate : launch the reconstruction from the current state for n extra iterations (see 7)
    1. stop iteration : stop the iterations (at the end of the current iteration )
    1. save reconstructions : save all the reconstruction under a folder
    1. Nb iteration the number of iteration to launch. The total number of iteration runned since the beginning is count right behind.
    1. History : Note all the actions made by the user since the begining. Theoretically you should be able to run back the reconstructions fron those data.
    1. Save history : save the history to a .txt file
    1. Qui : quit the application
