Characterisation Results ( EDNA log file )

Diffraction Plan

Forced space group	Anomalous data	Aimed multiplicity	Aimed completeness	Aimed I/sigma at highest res.	Aimed resolution (Å)
P222	False	16.00	0.99	3.00	1.00

Collection plan strategy ( RADDOSE log file , BEST log file )

Best has detected that the sample can diffract to 1.48 Å!
The current strategy is calculated to 1.81 Å. In order to calculate a strategy to 1.48 Å move the detector to collect 1.48 Å data and re-launch the EDNA characterisation.

Resolution limit is set by the initial image resolution
Wedge	Subwedge	Start (°)	Width (°)	No images	Exp time (s)	Max res (Å)	Rel trans (%)	Distance (mm)
1	1	0.00	1.50	240	0.10	1.81	20.24	181.08

Indexing summary: Forced spacegroup: P222

Refined unit cell parameters (Å/degrees)
a (Å)	b (Å)	c (Å)	alpha (°)	beta (°)	gamma (°)
54.812	59.083	66.990	90.000	90.000	90.000

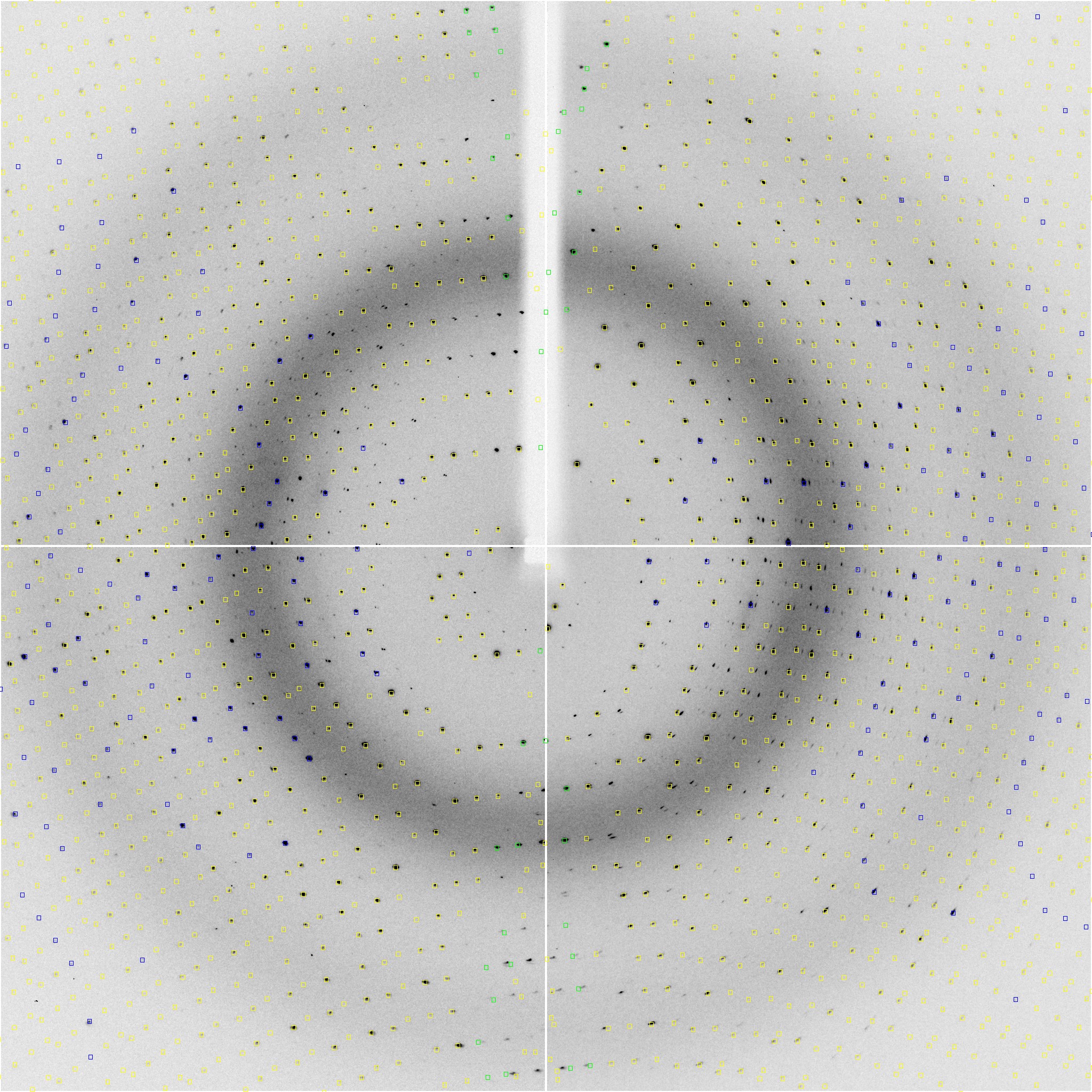

ref-testscale_1_001.img

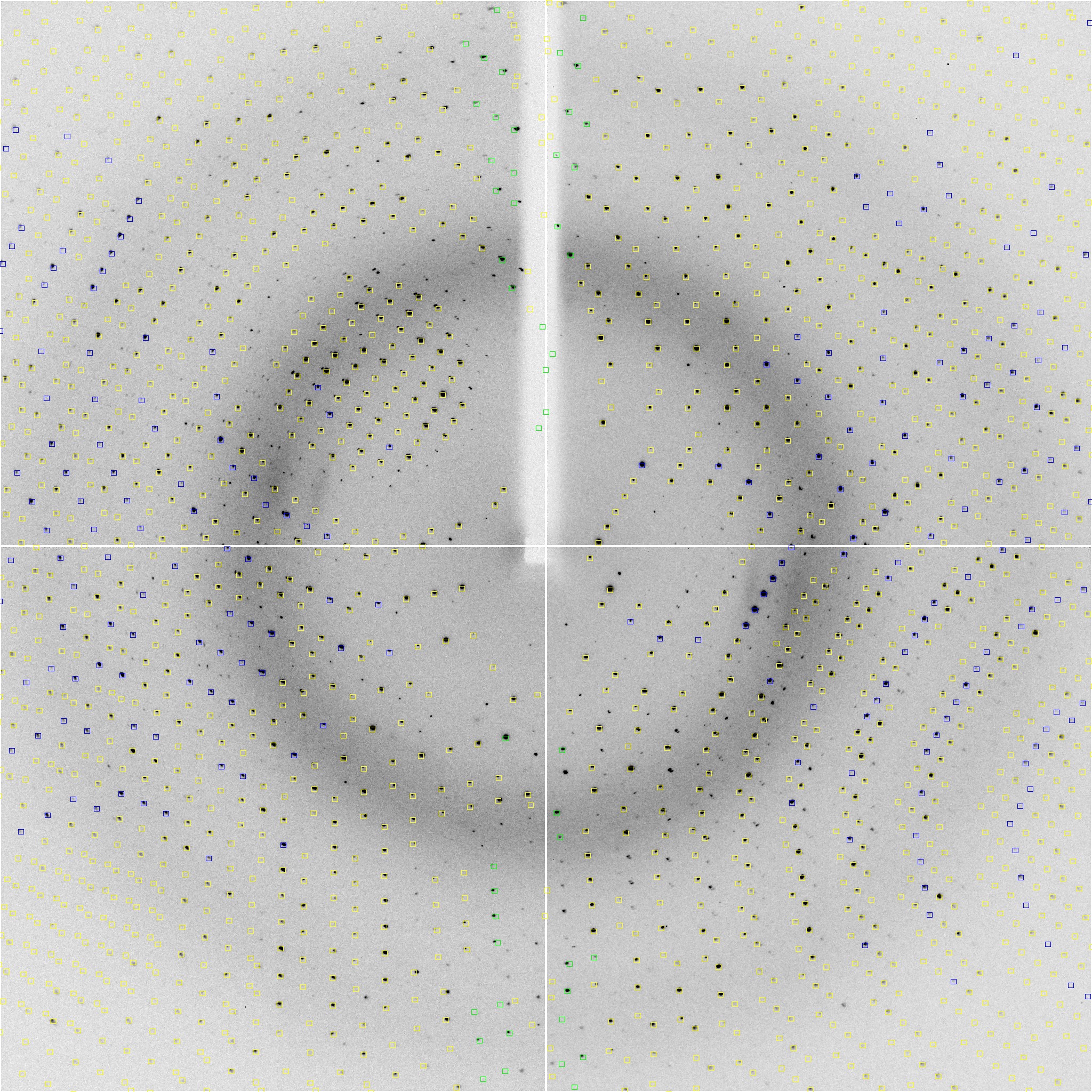

ref-testscale_1_002.img

Image quality indicators

File	Tot integr signal	Spot total	In-Res Total	Good Bragg	Ice Rings	Meth 1 Res	Meth 2 Res	Max unit cell
ref-testscale_1_001.img	10416170	1432	1332	1042	0	1.89	1.87	206.4
ref-testscale_1_002.img	10896280	1524	1431	1224	0	1.91	1.82	208.2

Generated on Fri Apr 27 15:39:10 2012
